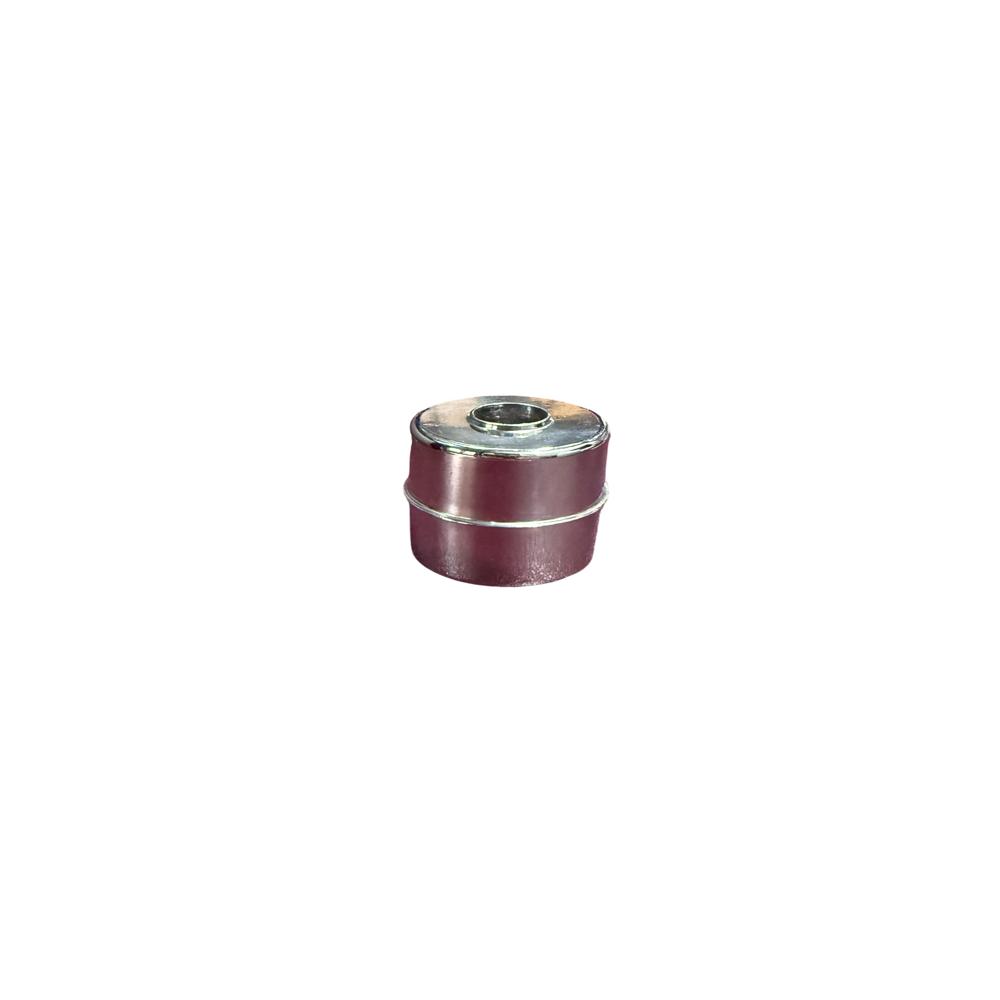

Top Mounted Magnetic Level Switches

Name: Top Mounted Magnetic Level Switches
Brand: MMC Floats and Valves
Price: 120.0 INR
Availability: InStock

Price 120.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Top Mounted Magnetic Level Switches Specification

Equipment Type
Level Switch

Temperature Range
-10C to +80C

Protection
IP65 / IP68

Capacity
Up to 5 bar

Resolution
2 mm

Application Media
Liquids (Water, Oil, Chemicals)

Humidity %
Up to 95% RH (non-condensing)

Diameter
Float: 50 mm / Stem: 16 mm

Sensor Type
Magnetic Reed Switch

Connectivity Type
SPST / SPDT Contacts (Cable / Terminal Box)

Pressure Range
Up to 5 bar

Current Range
0.5A to 1A Switching

Frequency
50/60 Hz

Measurement Range
Up to 5 meters

Material
Stainless Steel 304/316, Polypropylene (PP)

Power Supply
230 V AC / 24 V DC

Power Consumption
Low (<2W)

Accuracy
2 mm

Display Type
No Display (Switch Output)

Range
100 mm to 5000 mm (customizable)

Mounting Type
Top Mounted, Flanged / Threaded

Housing Material
SS304/316 or Polypropylene

Cable Entry
PG9/PG11, Cable Gland

Float Material
SS316L / PP (based on media compatibility)

Enclosure Type
Weatherproof / Flameproof (on request)

Ingress Protection
IP65 (Standard), IP68 (Optional)

Electrical Output
Potential Free Contacts

Number of Switches
Single or Multiple Switches on request

Ambient Temperature
-10C to +60C

Operating Principle
Magnetic Float & Reed Switch mechanism

Explosion Proof
Optional ATEX / Flameproof available

Installation Orientation
Vertical, Top mounting

Switch Rating
230V AC / 1A or 24V DC / 0.5A

Process Connection
1" BSP (Threaded), ANSI/DIN Flanges

Top Mounted Magnetic Level Switches Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About Top Mounted Magnetic Level Switches

Engineered for elite performance, our Top Mounted Magnetic Level Switches are regarded for their enviable durability and extraordinary reliability. Integrating a magnetic float and reed switch mechanism, these switches boast Noteworthy ingress protection (IP65/IP68) and favorable reviews from commercial enterprises across India. Designed for installation via flanged or threaded process connections and compatible with SS304/316 or Polypropylene housing, they ensure longevity in water, oil, or chemical media. Optional flameproof ATEX certifications and low power consumption make these switches an outstanding purchase for industrial liquid level control.

Commercial Versatility & Practical Application

These top mounted magnetic level switches are widely used by chemical, oil, water treatment, and general industrial sectors across India. Renowned for their extraordinary reliability, they suit commercial tanks, reservoirs, and containers requiring precise liquid level management. Designed for vertical, top-mount installation, use is straightforward-simply fit into the tank's top opening using ANSI/DIN flange or threaded connection and follow standard wiring for instantaneous results. Their user-friendly configuration ensures minimal effort and ongoing efficiency.

Packaging, Certifications & Procurement Policy

Every switch is dispatched quickly, securely packed to withstand transit while minimizing outlay for the buyer. We offer the lowest price options for bulk orders, ensuring economic efficiency. The product is backed by mandatory certifications like ATEX (for explosion proof versions) and carries an assurance of quality. Sample policies are flexible, allowing potential purchasers to evaluate features prior to commitment. Quick dispatch and favorable procurement terms guarantee prompt and risk-free acquisition for enterprises.

FAQ's of Top Mounted Magnetic Level Switches:

Q: How do Top Mounted Magnetic Level Switches operate?

A: These switches use a magnetic float and reed switch mechanism. When liquid level changes, the float moves vertically, actuating the internal reed switch to trigger a signal without direct electrical contact with the media.

Q: What process connections are available for installation?

A: Installation is possible with either a 1" BSP threaded connection or standard ANSI/DIN flanges, allowing flexibility for various tank or vessel designs.

Q: Where can these level switches be effectively used?

A: They are ideal for liquid level monitoring in commercial settings such as water treatment plants, chemical tanks, oil storage, and process vessels, offering extraordinary reliability in diverse liquid media.

Q: What are the benefits of choosing the explosion proof (ATEX) version?

A: The explosion proof variant provides enhanced safety in hazardous environments, complying with ATEX/Flameproof standards, making them suitable for industries handling flammable or volatile substances.

Q: How accurate are these switches, and what customization options exist?

A: The switches provide a high accuracy of 2 mm and can be tailored for measurement ranges between 100 mm and 5000 mm, with single or multiple switch points as per user specifications.
